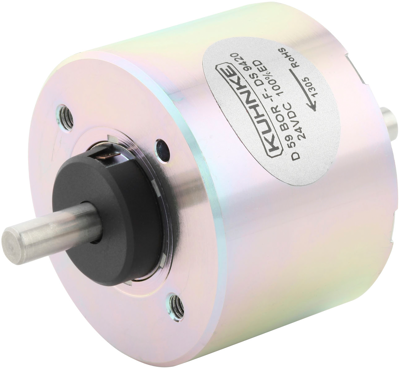

D 59-BOR-F-DS9420-24VDC 100% ED | Kendrion Kuhnke

Rotary solenoids, Kuhnke D 5.

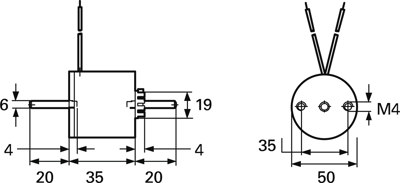

Standard version with shaft end on both sides, clockwise rotation, with return spring on the shaft end (type D 59.. with soft adjustable return spring)

Design: cylindrical

Angle of rotation: 45° or 95°

Rated voltage: 24 VDC

Rated current: 420 mA

Rated resistance: 57.4 ohm

Approved relative duty cycle: 100%

Connection: 200 mm stranded wire with free ends

Time constant: approx. 8.0 to 25 ms

Test voltage: 2500 VRMS

Insulation class: B

Temperature limit: +130 °C

Weight: approx. 380 g.
