46.001 | Kendrion Kuhnke
3/2-way NC poppet valve, 0-12 bar, 46.001
Unit Price (€ / pc.)
122.6057 € *
Available: 15 pcs.
Next delivery: 6 pcs. on 2025-01-16
Leadtime: 25 Weeks **
Total Price:
122.61 € *
Price list
Quantity
Price per unit*
1 pcs.
122.6057 €
3 pcs.
118.9286 €
10 pcs.
114.8588 €
25 pcs.
111.7767 €
100 pcs.
106.8739 €
*incl. VAT plus shipping costs
**Subject to prior sale
Mechanical seat valves, type Kuhnke 46.00.

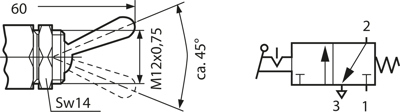

3/2-way valve (non-intersecting) with narrow housing and M12 x 0.75 bushing mount; Features: long useful life. Spring-loaded return mechanism. Pressure range: 12 bar. Rated bore: 2 (2.0 mm). Operating temperatures: –10 to +70 °C. Housing: hexagon, CuZn. Plunger: CrNi steel, corrosion-proof. Seals: oil-proof Perbunan. Mounting position: any. Pressure media connection: M 5. Media for operation: filtered, oiled or filtered oil-free compressed air or other gaseous media with viscosity in accordance with ISO-VG 10. Mode of operation: NC (in zero position).
With manual lever, type 46.001.
Type: 46.001, poppet valve
Technical specifications
| Connection | M5 connector | |
| Version | 3/2-way NC poppet valve | |
| Pressure range | 0-12 bar | |
| Nominal width | 2 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84812090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
