47.075 | Kendrion Kuhnke

Exhaust throttle, 12 bar, 47.075

Order No.: 63G200
EAN: 4099891492793
MPN:
47.075
Series: 47

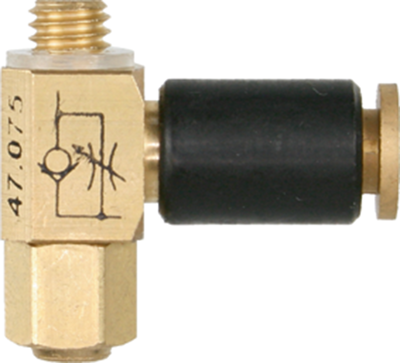

47.075 Kendrion Kuhnke Valves Image 1
47.075 Kendrion Kuhnke Valves Image 2
Image may differ
Unit Price (€ / pc.)
38.9963 € *
Available: 13 pcs.
Next delivery: 14 pcs. on 2025-07-10
Leadtime: On Request **
Total Price:
39.00 € *
Price list
Quantity
Price per unit*
1 pcs.
38.9963 €
5 pcs.
36.6520 €
15 pcs.
35.2478 €
50 pcs.
33.7008 €
150 pcs.
32.2966 €
*incl. VAT plus shipping costs
**Subject to prior sale

One-way flow restrictors in banjo fittings, type Kuhnke 47.0.

For direct screw-mounting into valve and cylinder threads.

With push-in coupling, type 47.075/76.

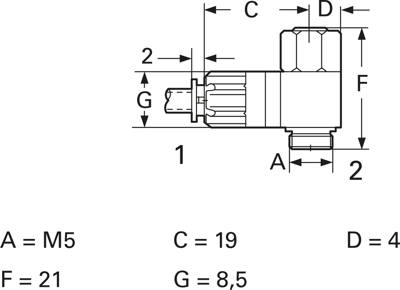

One side with M 5 thread (dimension A), opposing side with 4 x 1 or 4 x 0.65 ( for tubing coupling, calibrated externally; Dimensions (mm): C 19, D 4.0, F 21, G 8.5 mm.

Type: 47.075, exhaust choke

Technical specifications
Connection Gewindeanschluss M5
Version Abluftdrossel
Pressure range 12 bar
Logistics
Country of origin DE
Customs tariff number 84812090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
