47.251.40 | Kendrion Kuhnke
Choke check valve, 0.5-8 bar, 47.251.40
Unit Price (€ / pc.)
87.3341 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
87.33 € *
Price list
Quantity
Price per unit*
1 pcs.
87.3341 €
10 pcs.
76.8383 €
25 pcs.
74.2322 €
50 pcs.
72.1378 €
*incl. VAT plus shipping costs
**Subject to prior sale
Check valves, type Kuhnke 47.
For adjusting flow volumes and cylinder speed, very fine regulating circuit, optimal coordination of the spindle rotation with setup characteristics; Pressure range: max. 8.0 bar. Rated width: 2.0 mm. Housing material: brass. Choke needle: stainless steel. Mounting position: any. Pressurized media fitting: M 5. Medium: filtered, oiled, or filtered and non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10. Ambient temperatures: –10 to +70 °C.
One-way flow restrictors with fixed orifice, type 47.251.
Can be used to reduce the flow rate to low and constant values (e.g. in time control systems; Pressure range: 0.5 to 8.0 bar.
Type: 47.251.40, with fixed orifice 0.40 mm

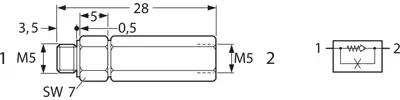

Technical specifications
| Connection | M5 connector | |
| Version | choke check valve | |
| Pressure range | 0.5-8 bar | |
| Nominal width | 0.4 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84818059 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
