47.260 | Kendrion Kuhnke
Check valve, 0.5-8 bar, 47.260
Unit Price (€ / pc.)
51.7412 € *
Available: 11 pcs.
Leadtime: 12 Weeks **
Total Price:
51.74 € *
Price list
Quantity
Price per unit*
1 pcs.
51.7412 €
5 pcs.
48.6353 €
15 pcs.
46.7789 €
50 pcs.
44.7083 €
150 pcs.
42.8400 €
*incl. VAT plus shipping costs
**Subject to prior sale

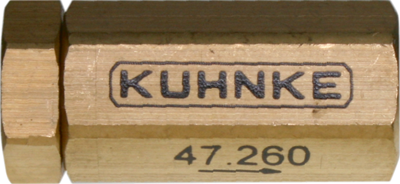

Non-return valves, type Kuhnke 47.260.

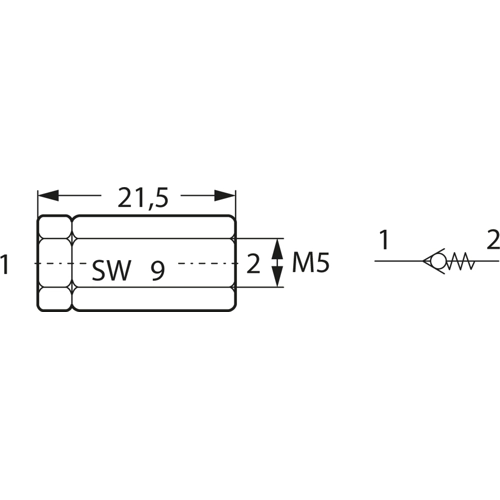

Pressure range: max. 8.0 bar. Opening pressure: at least 0.5 bar. Rated bore: 2 = 2.0 mm. Kv value: approx. 1.6 l/min. Operating temperatures: –10 to +70 °C. Housing: brass. Mounting position: any. Pressure media connection: M 5. Media for operation: filtered, oiled or filtered oil-free compressed air or other gaseous media with a permitted viscosity to ISO-VG 10. Length: 21.5 mm.
Type: 47.260, non-return valve
Technical specifications
| Connection | M5 connector | |
| Version | check valve | |
| Pressure range | 0.5-8 bar | |
| Nominal width | 2 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84818059 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
