65.231 24VDC | Kendrion Kuhnke

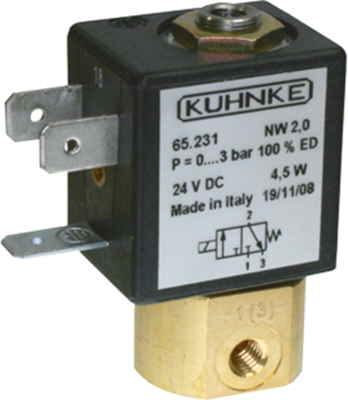

3/2-way NC poppet valve, 0-3 bar, 24 V, 4.5 W, 65.231 24VDC
Unit Price (€ / pc.)
133.9107 € *
Available: 0 pcs.
Next delivery: 10 pcs. on 2025-01-31
Leadtime: 18 Weeks **
Total Price:
133.91 € *
Price list
Quantity
Price per unit*
10 pcs.
133.9107 €
25 pcs.
130.3288 €
*incl. VAT plus shipping costs
**Subject to prior sale
Micro solenoid valves, type Kuhnke 65.
Directional 3/2-way poppet valve with standard socket; Pressure range: 8.0 bar. Pressurized media fitting: M 5. Electrical connection: 6.3 x 0.8 tab terminals. Degree of protection: IP 65. Design to VDE 0580/VDE 0110. Insulation class: E. Insulation group: C. Ambient temperatures: –10 to +50 °C.
3/2-way NC valves for 24 VDC, rated orifice NW 2.0, 3.0 bar pressure, type 65.231.
Rated coil power: approx. 4.5 W. Release power: 0.15 W. Pickup time: 10 to 15 ms. Kv value: 1.15 l/min.
Technical attributes (type, rated resistance, rated current): 65.231, 117 ohm, 205 mA
Technical specifications
| Connection | plug-in connection | |
| Version | 3/2-way NC poppet valve | |
| Pressure range | 0-3 bar | |
| Power | 4.5 W | |
| Rated voltage | 24 V | |
| Nominal width | 2 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84812090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
