79.028 | Kendrion Kuhnke
3/2-way steelspool valve, 2-10 bar, 79.028
Unit Price (€ / pc.)
351.1333 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
351.13 € *
Price list
Quantity
Price per unit*
1 pcs.
351.1333 €
3 pcs.
340.6018 €
10 pcs.
328.8922 €
25 pcs.
320.1219 €
50 pcs.
313.1009 €
*incl. VAT plus shipping costs
**Subject to prior sale
Steel spool valves, type Kuhnke 79.
3/2-way valve, servo controlled; Function: NC (in zero position). Pressure range: 2.0 to 10 bar. Rated orifice: 2.0 mm. Switching time at 6.0 bar: approx. 65 ms. Housing: aluminum alloy. Valve end caps: zinc alloy or Macrolon. Spool and liner: hardened steel, corrosion resistant. Pressurized media fitting: M 5. Medium: filtered oiled or non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10. Ambient temperatures: –10 to +70 °C.

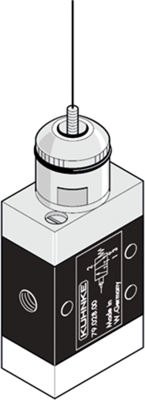

Steel spool valves, type Kuhnke 79.028.

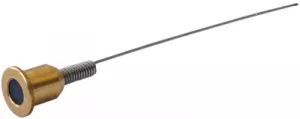

The deflection of the cat whisker can be adjusted at the tip by approx. 2.0 to 5.0 mm, max. 10 mm; Actuating force at the tip: approx. 0.05 N.
Type: 79.028, valve
Technical specifications
| Connection | M5 connector | |
| Version | 3/2-way steelspool valve | |
| Pressure range | 2-10 bar | |
| Nominal width | 2 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84812090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
