79.029 | Kendrion Kuhnke
3/2-way steelspool valve, 2-10 bar, 79.029
Unit Price (€ / pc.)
238.3927 € *
Available: 5 pcs.
Leadtime: On Request **
Total Price:
238.39 € *
Price list
Quantity
Price per unit*
1 pcs.
238.3927 €
2 pcs.
231.2289 €
5 pcs.
217.3654 €
*incl. VAT plus shipping costs
**Subject to prior sale
Steel spool valves, type Kuhnke 79.
3/2-way valve, servo controlled; Function: NC (in zero position). Pressure range: 2.0 to 10 bar. Rated orifice: 2.0 mm. Switching time at 6.0 bar: approx. 65 ms. Housing: aluminum alloy. Valve end caps: zinc alloy or Macrolon. Spool and liner: hardened steel, corrosion resistant. Pressurized media fitting: M 5. Medium: filtered oiled or non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10. Ambient temperatures: –10 to +70 °C.

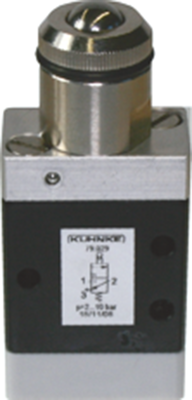

Steel spool valves, type Kuhnke 79.029.
With ball actuation; Actuation stroke: approx. 1.0 mm. Actuation force: approx. 0.25 N.
Type: 79.029, valve
Technical specifications
| Connection | M5 connector | |
| Version | 3/2-way steelspool valve | |
| Pressure range | 2-10 bar | |
| Nominal width | 2 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84812090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
