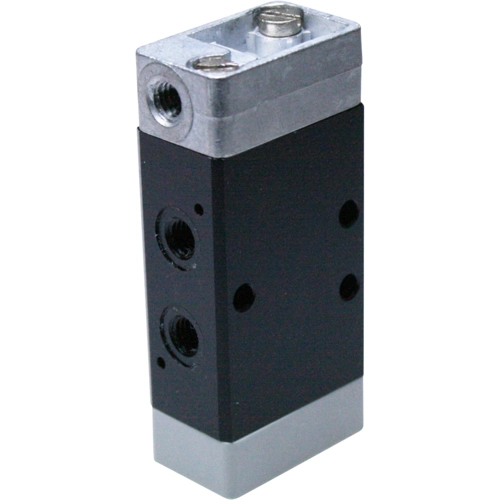

81.012 | Kendrion Kuhnke
5/2-way steelspool valve, 0-10 bar, 81.012
Unit Price (€ / pc.)
218.1627 € *
Available: 12 pcs.
Leadtime: 25 Weeks **
Total Price:
218.16 € *
Price list
Quantity
Price per unit*
1 pcs.
218.1627 €
3 pcs.
211.6177 €
10 pcs.
204.3468 €
25 pcs.
198.8847 €
50 pcs.
194.5293 €
*incl. VAT plus shipping costs
**Subject to prior sale
Steel spool valves, type Kuhnke 81.
5/2- way valve; Pressure range: 0 to 10 bar. Rated orifice: 2.0 mm. Housing: aluminum alloy. Valve end caps: zinc alloy or Macrolon. Spool and liner: steel hardened, corrosion resistant. Pressurized media fitting: M 5. Medium: or filtered non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10. Ambient temperatures: –10 to +70 °C.
With pneumatic actuation, type 81.012.
Control pressure: min. 2.0 bar.
Type: 81.012, valve
Technical specifications
| Connection | M5 connector | |
| Version | 5/2-way steelspool valve | |
| Pressure range | 0-10 bar | |
| Nominal width | 2 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84812090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
