83.212 | Kendrion Kuhnke
5/2-way steelspool valve, 2.5-8 bar, 83.212
Unit Price (€ / pc.)
91.1421 € *
Available: 6 pcs.
Leadtime: 25 Weeks **
Total Price:
91.14 € *
Price list
Quantity
Price per unit*
1 pcs.
91.1421 €
3 pcs.
88.4051 €
*incl. VAT plus shipping costs
**Subject to prior sale

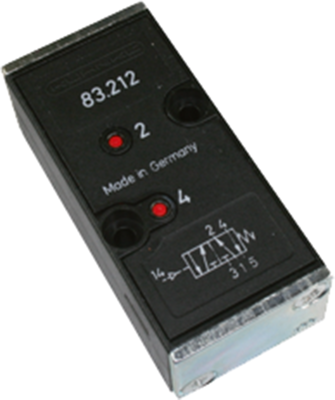

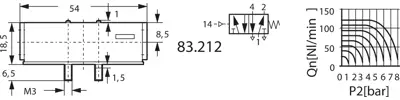

Pneumatically actuated spool valves, type Kuhnke 83.2.
Spool with O-ring seal; Pressure range: 2.5 to 8.0 bar. Rated orifice: NW 2 (2.0 mm). Function: 5/2-way valve. Housing: plastic. Seal: NBR. Mounting position: any. Pressurized media fitting: on base panel. Ambient temperatures: –10 to +60 °C. Medium: filtered, oiled, or filtered non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10.
Technical attributes (type, return, actuation): 83.212, spring, pressure on 14
Technical specifications
| Version | 5/2-way steelspool valve | |
| Pressure range | 2.5-8 bar | |
| Nominal width | 2 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84812090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
