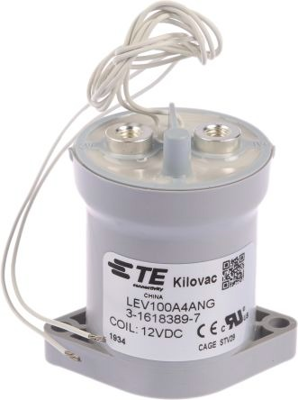

3-1618389-7 | KILOVAC
DC contactor, 1 pole, 100 A, 1 Form X, coil 12 VDC, solder connection, 3-1618389-7
Order No.: 25G1391
EAN: 4099889389296
MPN:
3-1618389-7
LEV100A4ANG
Unit Price (€ / pc.)
144.8349 € *
Available: 0 pcs.
Available in 5 Days: 998 pcs.
Leadtime: 25 Weeks **
Total Price:
144.83 € *
Price list
Quantity
Price per unit*
1 pcs.
144.8349 €
3 pcs.
142.1455 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Contactor, 3-1618389-7, KILOVAC
Terminal Configuration: 2 x M4 Bolt, Auxiliary Switch Contact Arrangement: None, Actuating System: DC, Coil Voltage (Max): 12 VDC, DC Contactor Coil Resistance: 26 Ω, DC Contactor Coil Voltage Rating: 12 VDC, DC Contactor Contact Switching Voltage (Max): 900 VDC, DC Contactor Contact Arrangement: 1 Form X, SPST-NO DM, DC Contactor Contact Current Rating: 100 A, Pole Configuration: 1, Coil Termination: Wire, DC Contactor Mounting Type: Bottom, Coil Wire Length: 381 mm, Wire Size: 22 AWG, Wire Size: .34 mm², Packaging Method: Individual, Torque: 30 – 40 in-lbs
Technical specifications
| Connection | solder connection | |
| Version | DC contactor | |
| rated voltage (AC) | 900 V | |
| Assembly | PCB mounting | |
| Rated current | 100 A | |
| Pin number | 1 pole | |
| Latching switching function | 1 Form X | |
| Control Voltage | 12 VDC |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
