KA-3528LVSECKT-J3 | Kingbright
LED, SMD, red, 625 nm, 120 mcd to 0.18 cd, 120°, KA-3528LVSECKT-J3
Unit Price (€ / pc.)
0.1975 € *
Available: 0 pcs.
Leadtime: On Request **

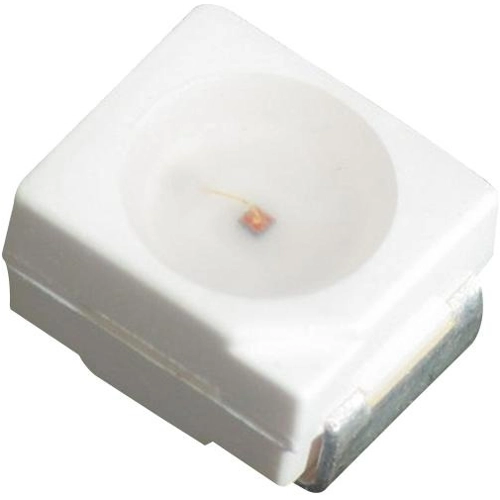

Surface mount LED lamp, KA-3528LVSECKT-J3, Kingbright
The hyper red device is based on light emitting diode chip made from AlGaInP.
Features
- Single color
- Suitable for all SMT assembly and solder process
- Ideal for backlighting
- Low current IF=2mA operating
- RoHS compliant
Technical specifications
| Radiation angle | 120 ° | |
| Number of LEDs | 1 | |
| Width | 2.8 mm | |
| On-State Voltage | 1.8 V | |
| Forward Current | 2 mA | |
| Colour of the LED | red | |
| Length | 3.2 mm | |
| Light intensity min. | 0.12 cd | |
| Light intensity typ. | 0.18 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 625 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
