KA-3528SGC | Kingbright
LED, SMD, green, 565 nm, 12.5 mcd to 0.04 cd, 120°, KA-3528SGC
Unit Price (€ / pc.)
0.1654 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

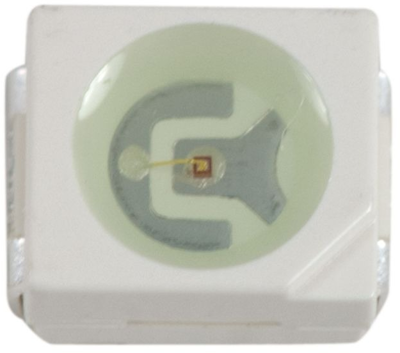

Surface mount LED lamp, KA-3528SGC, Kingbright
The super bright green source color device is made with gallium phosphide green light emitting diode.
Features
- Single color
- Suitable for all SMT assembly and solder process
- Ideal for backlighting
Technical specifications
| Radiation angle | 120 ° | |
| Number of LEDs | 1 | |
| Width | 2.8 mm | |
| On-State Voltage | 2.5 V | |
| Forward Current | 25 mA | |
| Colour of the LED | green | |
| Length | 3.2 mm | |
| Light intensity min. | 0.0125 cd | |
| Light intensity typ. | 0.04 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 565 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 4 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
