KA-3528SURC | Kingbright
LED, red, 0.11 to 0.23 cd, 120°, KA-3528SURC
Unit Price (€ / pc.)
0.1047 € *
Available: 250 pcs.
Leadtime: 6 Weeks **

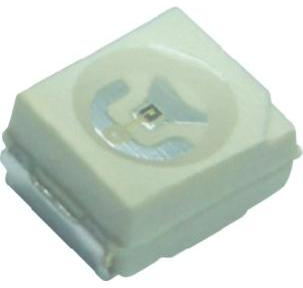

Surface mount LED lamp, KA-3528SURC, Kingbright
The hyper red source color device is made with AlGaInP on GaAs substrate light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
Features
- Single color
- Suitable for all SMT assembly and solder process
- Ideal for backlighting
- RoHS compliant
Applications
- Backlight
- Status indicator
- Home and smart appliances
- Wearable and portable devices
- Healthcare applications
Technical specifications
| Radiation angle | 120 ° | |
| Number of LEDs | 1 | |
| Colour of the LED | red | |
| Light intensity min. | 0.11 cd | |
| Light intensity typ. | 0.23 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
