KP-1608SGD | Kingbright
LED, SMD, 0603, green, 568 nm, 4 mcd to 0.015 cd, 120°, KP-1608SGD
Unit Price (€ / pc.)
0.1737 € *
Available: 1,773 pcs.
Leadtime: 6 Weeks **
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1737 €
50 pcs.
0.1249 €
250 pcs.
0.1047 €
1000 pcs.
0.0893 €
2500 pcs.
0.0785 €
*incl. VAT plus shipping costs
**Subject to prior sale

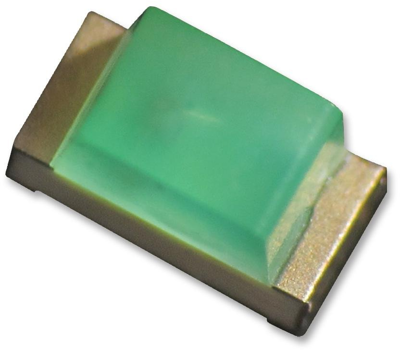

SMD Chip LED lamp, KP-1608SGD, Kingbright
The super bright green source color device is made with gallium phosphide green light emitting diode.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Radiation angle | 120 ° | |
| Number of LEDs | 1 | |
| Width | 0.8 mm | |
| On-State Voltage | 2.5 V | |
| Forward Current | 25 mA | |
| Colour of the LED | green | |
| Enclosure | 0603 | |
| Length | 1.6 mm | |
| Light intensity min. | 0.004 cd | |
| Light intensity typ. | 0.015 cd | |
| Lens | green | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 568 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
