KPB-2012SURKCGKC | Kingbright
LED, SMD, 0805, red/green, 574 nm, 120 mcd to 0.2 cd, 150°, KPB-2012SURKCGKC
Unit Price (€ / pc.)
0.3451 € *
Available: 23,340 pcs.
Leadtime: 6 Weeks **
Total Price:
1.73 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3451 €
50 pcs.
0.2916 €
100 pcs.
0.2535 €
500 pcs.
0.2273 €
1000 pcs.
0.2035 €
*incl. VAT plus shipping costs
**Subject to prior sale

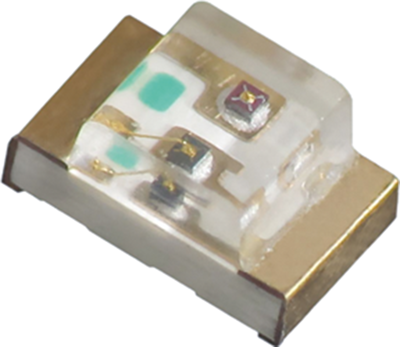

SMD Chip LED lamp, KPB-2012SURKCGKC, Kingbright
The hyper red source color device is made with AlGaInP on GaAs substrate light emitting diode. The green source color device is made with AlGaInP on GaAs substrate light emitting diode.
Features
- Bi -color,Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Radiation angle | 150 ° | |
| Number of LEDs | 2 | |
| Width | 1.25 mm | |
| On-State Voltage | 2.1 V | |
| Forward Current | 30 mA | |
| Colour of the LED | red/green | |
| Enclosure | 0805 | |
| Length | 2 mm | |
| Light intensity min. | 0.12 cd | |
| Light intensity typ. | 0.2 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 574 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
