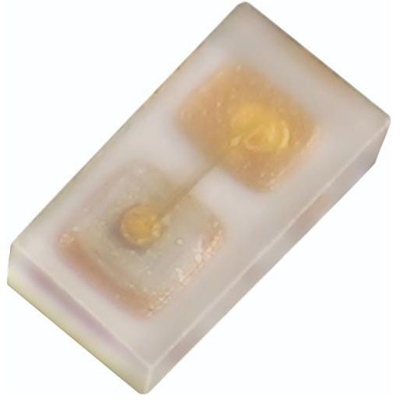

KPG-0603CGC-TT | Kingbright
LED, SMD, 0603, green, 571 nm, 6 mcd to 0.015 cd, 135°, KPG-0603CGC-TT
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4403 €
50 pcs.
0.3570 €
250 pcs.
0.2832 €
1000 pcs.
0.2511 €
2000 pcs.
0.2261 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD Chip LED lamp, KPG-0603CGC-TT, Kingbright
The green source color device is made with AlGaInP on GaAs substrate light emitting diode.
Features
- Low power consumption
- Wide viewing angle
- Compatible with automatic placement equipment
- RoHS compliant
Technical specifications
| Radiation angle | 135 ° | |
| Number of LEDs | 1 | |
| Width | 0.35 mm | |
| On-State Voltage | 2.4 V | |
| Forward Current | 20 mA | |
| Colour of the LED | green | |
| Enclosure | 0603 | |
| Length | 0.65 mm | |
| Light intensity min. | 0.006 cd | |
| Light intensity typ. | 0.015 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 571 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
