KPG-1608QBC-D | Kingbright

LED, SMD, 0603, blue, 465 nm, 40 mcd to 0.1 cd, 120°, KPG-1608QBC-D

Order No.: 72S2006
EAN: 4099879011794
MPN:
KPG-1608QBC-D
Series: KPG-1608
Kingbright
KPG-1608QBC-D Kingbright LEDs
Image may differ
Unit Price (€ / pc.)
0.3689 € *
Available: 1,890 pcs.
Leadtime: 6 Weeks **
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3689 €
50 pcs.
0.3094 €
100 pcs.
0.2773 €
500 pcs.
0.2451 €
1000 pcs.
0.2225 €
*incl. VAT plus shipping costs
**Subject to prior sale

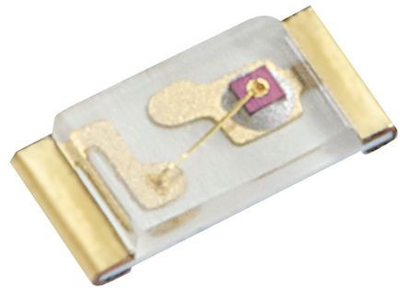

SMD Chip LED lamp, KPG-1608QBC-D, Kingbright

The blue source color device is made with InGaN light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.

Features

  • Low power consumption
  • Wide viewing angle
  • Compatible with automatic placement equipment
  • Ideal for backlight and indicator
  • RoHS compliant

Applications

  • Backlight
  • Status indicator
  • Home and smart appliances
  • Wearable and portable devices
  • Healthcare applications
Technical specifications
Radiation angle 120 °
Number of LEDs 1
Width 0.8 mm
On-State Voltage 4 V
Forward Current 30 mA
Colour of the LED blue
Enclosure 0603
Length 1.6 mm
Light intensity min. 0.04 cd
Light intensity typ. 0.1 cd
Lens clear
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Wavelength 465 nm
Logistics
Country of origin CN
Customs tariff number 85414100
MSL MSL 3
Original Packaging Reel with 4,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
