KPHHS-1005LVQBC-D | Kingbright
LED, SMD, 0402, blue, 465 nm, 6 mcd to 0.015 cd, 140°, KPHHS-1005LVQBC-D
Unit Price (€ / pc.)
0.1654 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

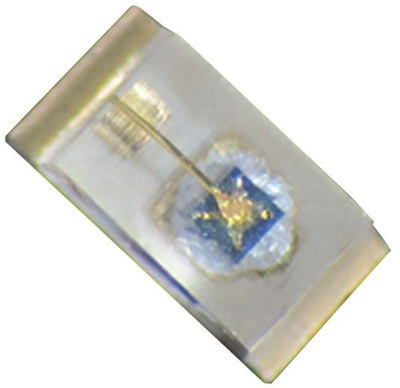

SMD Chip LED lamp, KPHHS-1005LVQBC-D, Kingbright
The blue source color device is made with InGaN light emitting diode. It is recommended to use a wrist band or anti- electrostatic glove when handling the LEDs.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Radiation angle | 140 ° | |
| Number of LEDs | 1 | |
| Width | 0.5 mm | |
| On-State Voltage | 2.65 V | |
| Forward Current | 30 mA | |
| Colour of the LED | blue | |
| Enclosure | 0402 | |
| Length | 1 mm | |
| Light intensity min. | 0.006 cd | |
| Light intensity typ. | 0.015 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 465 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
