KPT-3216ZGC | Kingbright
LED, SMD, 1206, green, 525 nm, 200 mcd to 0.4 cd, 120°, KPT-3216ZGC
Unit Price (€ / pc.)
0.1749 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

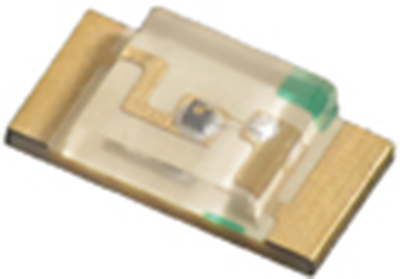

SMD Chip LED lamp, KPT-3216ZGC, Kingbright
The green source color device is made with InGaN on sapphire light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Applications
- Backlight
- Status indicator
- Home and smart appliances
- Wearable and portable devices
- Healthcare applications
Technical specifications
| Abstrahlwinkel | 120 ° | |
| Anzahl der LEDs | 1 | |
| Breite | 1.6 mm | |
| Durchlassspannung | 4.1 V | |
| Durchlassstrom | 25 mA | |
| Farbe der LED | grün | |
| Gehäuse | 1206 | |
| Länge | 3.2 mm | |
| Lichtstärke min. | 0.2 cd | |
| Lichtstärke typ. | 0.4 cd | |
| Linse | klar | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Wellenlänge | 525 nm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85414100 |
| MSL | MSL 3 |
| Originalverpackung | Rolle mit 2.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
