KPTD-1608CGCK | Kingbright
LED, SMD, 0603, green, 570 nm, 0.08 to 0.19 cd, 60°, KPTD-1608CGCK
Unit Price (€ / pc.)
0.1595 € *
Available: 0 pcs.
Leadtime: On Request **

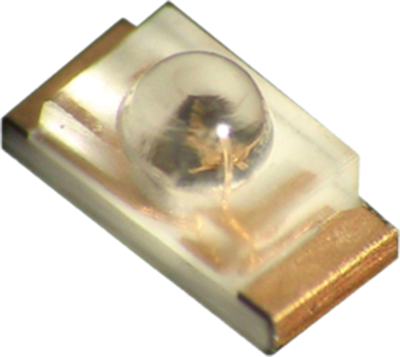

SMD Chip LED lamp, KPTD-1608CGCK, Kingbright
The green source color device is made with AlGaInP on GaAs substrate light emitting diode.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Radiation angle | 60 ° | |
| Number of LEDs | 1 | |
| Width | 0.8 mm | |
| On-State Voltage | 2.5 V | |
| Forward Current | 30 mA | |
| Colour of the LED | green | |
| Enclosure | 0603 | |
| Length | 1.6 mm | |
| Light intensity min. | 0.08 cd | |
| Light intensity typ. | 0.19 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 570 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
