KPTD-1608LVSECK-J3-PF | Kingbright
LED, SMD, 0603, red, 640 nm, 20 mcd to 0.15 cd, 60°, KPTD-1608LVSECK-J3-PF
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5712 €
50 pcs.
0.4522 €
100 pcs.
0.3689 €
500 pcs.
0.3332 €
1000 pcs.
0.2987 €
*incl. VAT plus shipping costs
**Subject to prior sale

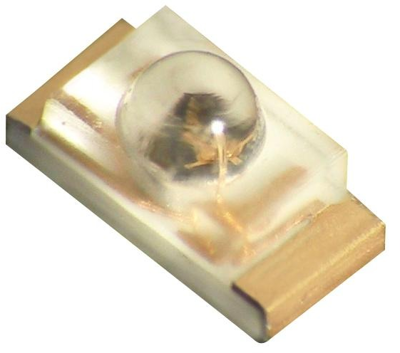

SMD Chip LED lamp, KPTD-1608LVSECK-J3-PF, Kingbright
The hyper red device is based on light emitting diode. made from AlGaInP.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Radiation angle | 60 ° | |
| Number of LEDs | 1 | |
| Width | 0.8 mm | |
| On-State Voltage | 1.8 V | |
| Forward Current | 2 mA | |
| Colour of the LED | red | |
| Enclosure | 0603 | |
| Length | 1.6 mm | |
| Light intensity min. | 0.02 cd | |
| Light intensity typ. | 0.15 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 640 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
