KPTD-1608LVZGCK | Kingbright
LED, SMD, 0603, green, 515 nm, 120 mcd to 0.22 cd, 40°, KPTD-1608LVZGCK
Unit Price (€ / pc.)
0.3058 € *
Available: 1,050 pcs.
Leadtime: 6 Weeks **
Total Price:
7.65 € *
Price list
Quantity
Price per unit*
25 pcs.
0.3058 €
125 pcs.
0.2701 €
500 pcs.
0.2440 €
2000 pcs.
0.2225 €
5000 pcs.
0.2035 €
*incl. VAT plus shipping costs
**Subject to prior sale

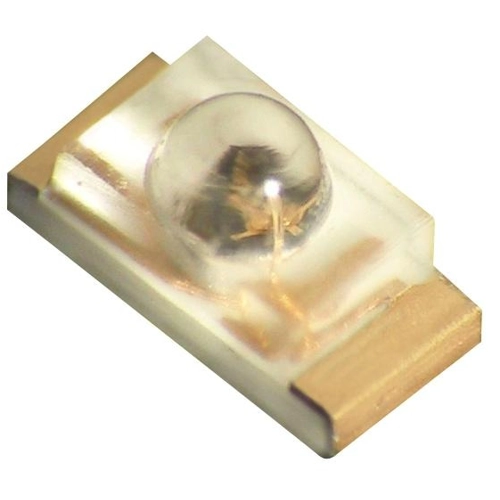

SMD Chip LED lamp, KPTD-1608LVZGCK, Kingbright
The green source color device is made with InGaN on sapphire light emitting diode. It is recommended to use a wrist band or anti- electrostatic glove when handling the LEDs.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Abstrahlwinkel | 40 ° | |
| Anzahl der LEDs | 1 | |
| Breite | 0.8 mm | |
| Durchlassspannung | 2.65 V | |
| Durchlassstrom | 25 mA | |
| Farbe der LED | grün | |
| Gehäuse | 0603 | |
| Länge | 1.6 mm | |
| Lichtstärke min. | 0.12 cd | |
| Lichtstärke typ. | 0.22 cd | |
| Linse | klar | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Wellenlänge | 515 nm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85414100 |
| MSL | MSL 3 |
| Originalverpackung | Rolle mit 2.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
