L-7113SYCK | Kingbright

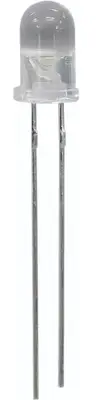

LED, THT, Ø 5 mm, yellow, 590 nm, 1.8 to 3 cd, 20°, L-7113SYCK
Unit Price (€ / pc.)
0.0583 € *
Available: 1,181 pcs.
Leadtime: On Request **
Solid state lamp, L-7113SYCK, Kingbright
The super bright yellow device is made with AlGaInP (on GaAs substrate) light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Radiation angle | 20 ° | |
| Number of LEDs | 1 | |
| On-State Voltage | 2.5 V | |
| Forward Current | 20 mA | |
| diameter | 5 mm | |
| Colour of the LED | yellow | |
| Length | 8.6 mm | |
| Light intensity min. | 1.8 cd | |
| Light intensity typ. | 3 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Wavelength | 590 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 1 |
| Original Packaging | Bag with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
