KB-2550SGD | Kingbright
LIGHT-BAR KB-2550SGD
Unit Price (€ / pc.)
1.7136 € *
Available: 0 pcs.
Leadtime: On Request **

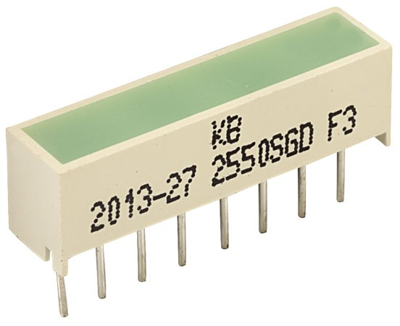

LED Light bar, KB-2550SGD, Kingbright
The super bright green source color device is made with gallium phosphide green light emitting diode.
Features
- Uniform light emitting area
- Low current operation
- Easily mounted on P.C. boards or industry standard sockets
- Flush mountable
- Excellent on/off contrast
- Can be used with panels and legend mounts
- Categorized for luminous intensity
- RoHS compliant
Applications
- Home and smart appliances
- Display time and digital combination
- Industrial and instrumental applications
- Numeric status
Technical specifications
| Rated current | 25 mA | |
| Width | 4.86 mm | |
| Colour | green | |
| Height | 6.1 mm | |
| Length | 20.04 mm | |
| Light intensity min. | 0.012 cd | |
| Light intensity typ. | 0.04 cd | |
| Lens | green-diffuse | |
| Assembly | THT | |
| Wavelength | 568 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
