185B | Klauke
Butt connector, uninsulated, 185 mm², metal, 56 mm, 185B
Order No.: 07F1335
EAN: 4012078799607
MPN:
185B
Unit Price (€ / pc.)
5.4859 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
5.49 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4859 €
10 pcs.
4.9385 €
50 pcs.
4.4506 €
100 pcs.
3.9984 €
*incl. VAT plus shipping costs
**Subject to prior sale

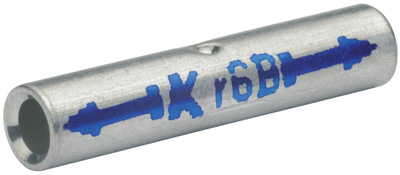

Butt connector, 185B, Klauke
Butt connector for compacted, multi-stranded round conductors.
Features
- Accurate assignment of crimping tool/crimping die through colour-coding system
- Less crimpings due to max. crimping width
- Reduced costs due to compact dimensions
- Processing without use of additional sleeves
- Annealed material optimises material and crimping properties
- Reliable tool selection by matching code indication on the butt connector
- Simple cable entry due to precise internal chamfer
Technical specifications
| Version | butt connector | |
| Colour | metal | |
| Isolated | No | |
| Length | 56 mm | |
| Cable cross-section | 185 mm² | |
| Material | copper, tin-plated | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
