627R | Klauke
Butt connectorwith insulation, 70 mm², yellow, 80 mm, 627R
Order No.: 07F2005
EAN: 4012078475839
MPN:
627R
Unit Price (€ / pc.)
4.0460 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.6414 €
50 pcs.
3.2844 €
100 pcs.
2.9512 €
*incl. VAT plus shipping costs
**Subject to prior sale

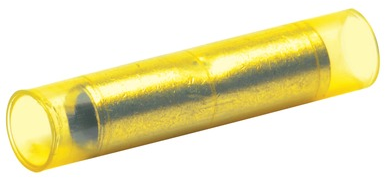

Insulated butt connector, 627R, Klauke
Insulated butt connector, Cu, standard type for multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2, for pre-rounded multi-stranded sector shaped conductors. It is directly crimped with the insulation and no additional insulation of the crimped connection required.
Features
- With buttmarks for precise cable insertion
- Annealed material optimises material and crimping properties
- Simple cable entry due to internal chamfer
- Heat resistant to 105° C
Technical specifications
| Version | butt connector | |
| Colour | yellow | |
| Isolated | Yes | |
| Length | 80 mm | |
| Cable cross-section | 70 mm² | |
| Material | copper, tin-plated | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
