729F | Klauke
Butt connector, uninsulated, 120 mm², metal, 60 mm, 729F
Order No.: 07F1545
EAN: 4012078470919
MPN:
729F
Unit Price (€ / pc.)
5.7715 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
5.77 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7715 €
10 pcs.
5.1884 €
50 pcs.
4.6767 €
100 pcs.
4.2007 €
*incl. VAT plus shipping costs
**Subject to prior sale

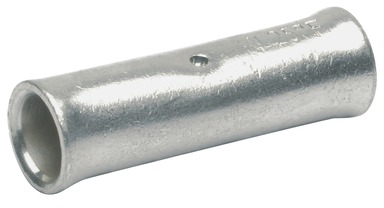

Butt connector, 729F, Klauke
Butt connector for fine and superfine stranded round conductors.
Features
- Tube dimension suitable for fine and superfine stranded conductors
- Simple insertion of spliced conductors due to special-widening
- Simple and safe processing due to butt mark
- Annealed material optimises material and crimping properties
- Simple cable entry due to precise internal chamfer
- Reliable tool selection by matching code indication on the butt connector
- Tin-plated to protect against corrosion
Technical specifications
| Version | butt connector | |
| Colour | metal | |
| Isolated | No | |
| Length | 60 mm | |
| Cable cross-section | 120 mm² | |
| Material | copper, tin-plated | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85359000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
