106R8 | Klauke

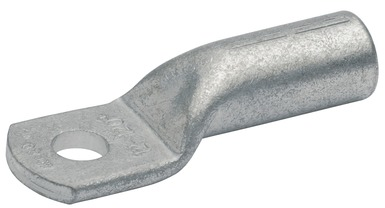

Uninsulated tube cable lug, 50 mm², 8.4 mm, M8, metal, 106R8
Order No.: 07F2110
EAN: 4012078444439
MPN:
106R8
Unit Price (€ / pc.)
5.9976 € *
Available: 34 pcs.
Leadtime: 2 Weeks **
Total Price:
6.00 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9976 €
10 pcs.
5.4026 €
50 pcs.
4.8671 €
100 pcs.
4.3792 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 106R8, Klauke
Compression cable lug made from copper, suitable for round conductors, non-tension copper cables and pre-rounded multi-stranded conductors.
Features
- Easy to process due to crimp markings
- Reliable tool selection by matching code indication on the butt connector
- Annealed material optimises material and crimping properties
- Tin-plated to protect against corrosion
Technical specifications
| Ausführung | Rohrkabelschuh | |
| Farbe | metall | |
| Gewindegröße | M8 | |
| Isoliert | No | |
| Leiterquerschnitt | 50 mm² | |
| Lochdurchmesser | 8.4 mm | |
| Material | Kupfer, verzinnt |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
