16538 | Klauke

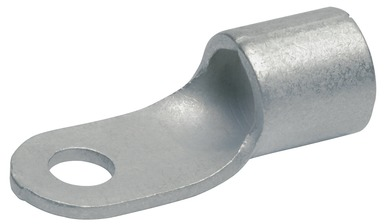

Uninsulated ring cable lug, 16 mm², 8.4 mm, metal, 16538
Order No.: 07F3967
EAN: 4012078022347
MPN:
16538
Unit Price (€ / pc.)
0.8449 € *
Available: 111 pcs.
Leadtime: 5 Weeks **
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
50 pcs.
0.7378 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 16538, Klauke
Ring cable lug suitable for conductors such as VDE 0295 standad, class 2, 5 and 6. Hard soldered in crimping area, grooved profile for improved contact characteristics.
Features
- Annealed material optimises material and crimping properties
- Tin-plated to protect against corrosion
- Ideal cable lug for control cabinet construction
Technical specifications
| Ausführung | Ringkabelschuh | |
| Farbe | metall | |
| Isoliert | No | |
| Leiterquerschnitt | 16 mm² | |
| Lochdurchmesser | 8.4 mm | |
| Material | Kupfer, verzinnt | |
| Nenngröße nach DIN | 8-16 |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
