47R1645 | Klauke
Uninsulated angled tube cable lug, 70 mm², 17 mm, M16, 47R1645
Order No.: 07F1173
EAN: 4012078467681
MPN:
47R1645
Unit Price (€ / pc.)
4.1650 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1650 €
10 pcs.
3.7485 €
50 pcs.
3.3677 €
100 pcs.
3.0345 €
*incl. VAT plus shipping costs
**Subject to prior sale

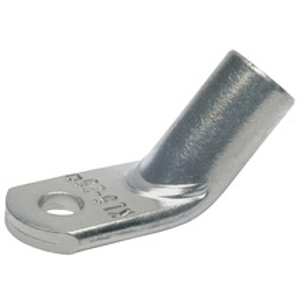

Angled tubular cable lug, 47R1645, Klauke
Angled tubular cable lug for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.
Features
- Flat contact surface by special angle pressing technology
- Annealed material optimises material and crimping properties
- Simple cable entry due to precise internal chamfer
- Tin-plated to protect against corrosion
- Reliable assignment owed to item designation on the cable lug
Technical specifications
| Ausführung | Winkelrohrkabelschuh | |
| Gewindegröße | M16 | |
| Isoliert | No | |
| Leiterquerschnitt | 70 mm² | |
| Lochdurchmesser | 17 mm | |
| Material | Kupfer, verzinnt | |
| Nenngröße nach DIN | DIN 60228 | |
| Schrumpfschlauch | No |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85359000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
