603R8 | Klauke

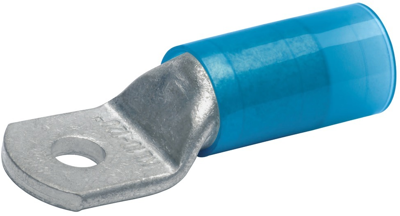

Insulated tube cable lug, 16 mm², 8.5 mm, M8, blue, 603R8

Order No.: 07F1254
EAN: 4012078468190
MPN:
603R8
Klauke
603R8 Klauke Cable Lugs
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5946 €
10 pcs.
1.4399 €
50 pcs.
1.2971 €
100 pcs.
1.1662 €
*incl. VAT plus shipping costs
**Subject to prior sale

Insulated tubular cable lug, 603R8, Klauke

Insulated tubular cable lug for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.

Features

  • Directly crimped with insulation
  • Annealed material optimises material and crimping properties
  • Simple and safe connection due to flat contact surfaces and internal chamfer
  • Tin-plated to protect against corrosion
Technical specifications
Version tube cable lug
Colour blue
Thread size M8
Material Insulation PA
Isolated Yes
Cable cross-section 16 mm²
Hole diameter 8.5 mm
Material copper, tin-plated
max. operating temperature 105 °C
Nominal size according to DIN DIN 60228
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
