604R5 | Klauke
Insulated tube cable lug, 25 mm², 5.5 mm, M5, yellow, 604R5
Order No.: 07F1257
EAN: 4012078461283
MPN:
604R5
Unit Price (€ / pc.)
2.2015 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2015 €
10 pcs.
1.9873 €
50 pcs.
1.7850 €
100 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale

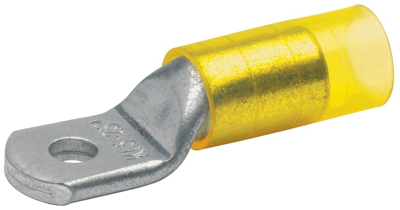

Insulated tubular cable lug, 604R5, Klauke
Insulated tubular cable lug for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.
Features
- Directly crimped with insulation
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Tin-plated to protect against corrosion
Technical specifications
| Version | tube cable lug | |
| Colour | yellow | |
| Thread size | M5 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 25 mm² | |
| Hole diameter | 5.5 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Nominal size according to DIN | DIN 60228 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
