620C5 | Klauke

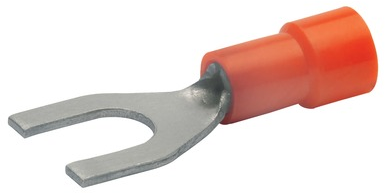

Insulated forked cable lug, 0.5-1.0 mm², AWG 20 to 18, 5.3 mm, M5, red, 620C5
Order No.: 07F904
EAN: 4012078001007
MPN:
620C5
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4760 €
50 pcs.
0.4522 €
100 pcs.
0.4284 €
*incl. VAT plus shipping costs
**Subject to prior sale
Insulated solderless terminal, 620C5, Klauke
Insulated solderless terminal, fork type, material: Copper, tin-plated, insulation sleeve: PA (halogen-free), temperature resistance: up to 105 °C, nominal cross-section: 0.5 to 1.0 mm², colour: red.
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 20 to 18 | |
| Colour | red | |
| Thread size | M5 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 0.5-1.0 mm² | |
| Hole diameter | 5.3 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Nominal size according to DIN | 5-1 |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
