745F10 | Klauke
Uninsulated angled tube cable lug, 35 mm², 10.5 mm, M10, 745F10
Order No.: 07F1504
EAN: 4012078469913
MPN:
745F10
Unit Price (€ / pc.)
2.6656 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
2.67 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6656 €
10 pcs.
2.3919 €
50 pcs.
2.1539 €
100 pcs.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale

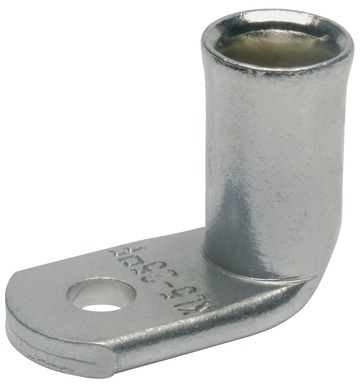

Angled tubular cable lug, 745F10, Klauke
Angled tubular cable lug for fine and superfine stranded round conductors.
Features
- Tube dimension suitable for fine and superfine stranded conductors
- Simple insertion of spliced conductors due to special-widening
- Flat contact surface by special angle pressing technology
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Reliable assignment owed to item designation on the cable lug
- Tin-plated to protect against corrosion
Technical specifications
| Ausführung | Winkelrohrkabelschuh | |
| Gewindegröße | M10 | |
| Isoliert | No | |
| Leiterquerschnitt | 35 mm² | |
| Lochdurchmesser | 10.5 mm | |
| Material | Kupfer, verzinnt | |
| Nenngröße nach DIN | DIN 60228 | |
| Schrumpfschlauch | No |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
