745F8 | Klauke

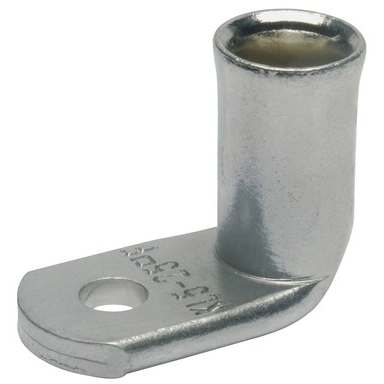

Uninsulated angled tube cable lug, 35 mm², 8.5 mm, M8, 745F8
Order No.: 07F1503
EAN: 4012078462730
MPN:
745F8
Unit Price (€ / pc.)
2.4157 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
2.42 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4157 €
10 pcs.
2.1658 €
50 pcs.
1.9516 €
100 pcs.
1.7612 €
*incl. VAT plus shipping costs
**Subject to prior sale
Angled tubular cable lug, 745F8, Klauke
Angled tubular cable lug for fine and superfine stranded round conductors.
Features
- Tube dimension suitable for fine and superfine stranded conductors
- Simple insertion of spliced conductors due to special-widening
- Flat contact surface by special angle pressing technology
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Reliable assignment owed to item designation on the cable lug
- Tin-plated to protect against corrosion
Technical specifications
| Version | angled tube cable lug | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 35 mm² | |
| Hole diameter | 8.5 mm | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
