92R3 | Klauke
Uninsulated tube cable lug, 1.5 mm², AWG 16, 3.2 mm, M3, metal, 92R3
Order No.: 07F2040
EAN: 4012078001526
MPN:
92R3
Unit Price (€ / pc.)
0.3094 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
100 pcs.
0.3094 €
500 pcs.
0.2844 €
1000 pcs.
0.2559 €
*incl. VAT plus shipping costs
**Subject to prior sale

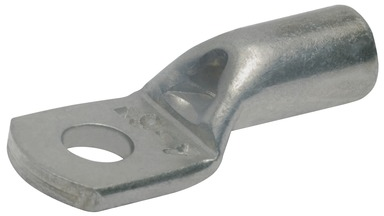

Tubular cable lug, 92R3, Klauke
Tubular cable lug 1.5 mm², M3. Suitable for fine-stranded round conductors with simple processing thanks to inspection hole for monitoring full conductor insertion. Made from copper.
Features
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Reliable assignment owed to item designation on the cable lug
- Tin plated to protect against corrosion
Technical specifications
| Version | tube cable lug | |
| AWG cross-section | AWG 16 | |
| Colour | metal | |
| Thread size | M3 | |
| Isolated | No | |
| Cable cross-section | 1.5 mm² | |
| Hole diameter | 3.2 mm | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
