92R5 | Klauke
Uninsulated tube cable lug, 1.5 mm², AWG 16, 5.3 mm, M5, metal, 92R5
Order No.: 07F2042
EAN: 4012078001564
MPN:
92R5
Unit Price (€ / pc.)
0.1702 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

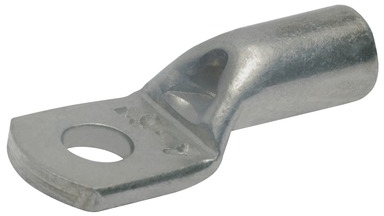

Tubular cable lug, 92R5, Klauke
Tubular cable lug 1.5 mm², M5. Suitable for fine-stranded round conductors with simple processing thanks to inspection hole for monitoring full conductor insertion. Made from copper.
Features
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Reliable assignment owed to item designation on the cable lug
- Tin plated to protect against corrosion
Technical specifications
| Ausführung | Rohrkabelschuh | |
| AWG-Leiterquerschnitt | AWG 16 | |
| Farbe | metall | |
| Gewindegröße | M5 | |
| Isoliert | No | |
| Leiterquerschnitt | 1,5 mm² | |
| Lochdurchmesser | 5.3 mm | |
| Material | Kupfer, verzinnt | |
| Nenngröße nach DIN | DIN 60228 | |
| Schrumpfschlauch | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
