93R3 | Klauke
Uninsulated tube cable lug, 2.5 mm², AWG 14, 3.2 mm, M3, metal, 93R3
Order No.: 07F2044
EAN: 4012078001601
MPN:
93R3
Unit Price (€ / pc.)
0.7973 € *
Available: 214 pcs.
Leadtime: 2 Weeks **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7259 €
50 pcs.
0.6545 €
100 pcs.
0.5712 €
*incl. VAT plus shipping costs
**Subject to prior sale

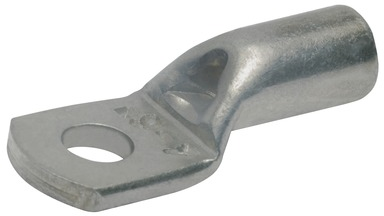

Tubular cable lug, 93R3, Klauke
Tubular cable lug 2.5 mm², M3. Suitable for fine-stranded round conductors with simple processing thanks to inspection hole for monitoring full conductor insertion. Made from copper.
Features
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Reliable assignment owed to item designation on the cable lug
- Tin plated to protect against corrosion
Technical specifications
| Ausführung | Rohrkabelschuh | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe | metall | |
| Gewindegröße | M3 | |
| Isoliert | No | |
| Leiterquerschnitt | 2,5 mm² | |
| Lochdurchmesser | 3.2 mm | |
| Material | Kupfer, verzinnt | |
| Nenngröße nach DIN | DIN 60228 | |
| Schrumpfschlauch | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
