96C5 | Klauke
Uninsulated tube cable lug, 10 mm², AWG 8, 5.5 mm, M5, metal, 96C5
Order No.: 07F3920
EAN: 4012078001854
MPN:
96C5
Unit Price (€ / pc.)
0.8211 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8211 €
10 pcs.
0.7378 €
50 pcs.
0.6664 €
100 pcs.
0.5831 €
*incl. VAT plus shipping costs
**Subject to prior sale

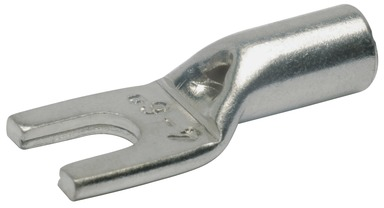

Tubular cable lug, 96C5, Klauke
Tubular cable lug, fork type, 10 mm², M5. Suitable for fine-stranded round conductors and multi-stranded round conductors with simple processing thanks to inspection hole for monitoring full conductor insertion. Made from copper.
Features
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Reliable assignment owed to item designation on the cable lug
- Tin-plated to protect against corrosion
Technical specifications
| Version | tube cable lug | |
| AWG cross-section | AWG 8 | |
| Colour | metal | |
| Thread size | M5 | |
| Isolated | No | |
| Cable cross-section | 10 mm² | |
| Hole diameter | 5.5 mm | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
