SR106 | Klauke
Uninsulated tube cable lug, 10 mm², 6.5 mm, M6, SR106
Order No.: 07F1340
EAN: 4012078482806
MPN:
SR106
Unit Price (€ / pc.)
1.0353 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

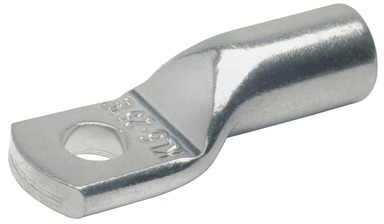

Tubular cable lug, SR106, Klauke
Tubular cable lug for single-stranded round conductors and pre-rounded sector shaped conductors.
Features
- Safe and secure connecting of solid conductors
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Tin-plated to protect against corrosion
Technical specifications
| Version | tube cable lug | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 10 mm² | |
| Hole diameter | 6.5 mm | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85359000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
