SR358 | Klauke
Uninsulated tube cable lug, 35 mm², 8.5 mm, M8, SR358
Order No.: 07F1346
EAN: 4012078482875
MPN:
SR358
Unit Price (€ / pc.)
2.3443 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
2.34 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3443 €
10 pcs.
2.1063 €
50 pcs.
1.8921 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
**Subject to prior sale

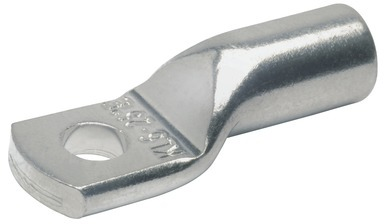

Tubular cable lug, SR358, Klauke
Tubular cable lug for single-stranded round conductors and pre-rounded sector shaped conductors.
Features
- Safe and secure connecting of solid conductors
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Tin-plated to protect against corrosion
Technical specifications
| Version | tube cable lug | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 35 mm² | |
| Hole diameter | 8.5 mm | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85359000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
