8303 | Klauke
Insulated flat plug sleeve, 4.8 x 0.8 mm, 1.5 to 2.5 mm², AWG 16 to 14, brass, tin-plated, blue, 8303
Order No.: 05F615
EAN: 4012078025270
MPN:
8303
Unit Price (€ / pc.)
0.7616 € *
Available: 106 pcs.
Leadtime: 3 Weeks **
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7616 €
10 pcs.
0.5950 €
50 pcs.
0.5355 €
100 pcs.
0.4998 €
500 pcs.
0.4522 €
*incl. VAT plus shipping costs
**Subject to prior sale

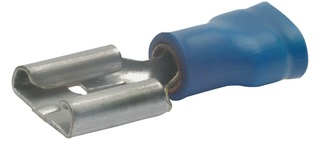

Insulated receptacle, 8303, Klauke
Insulated flat receptacle for 4.8 x 0.8 mm flat plugs, 18 mm long, Cross-section: 1.5 to 2.5 mm², Colour: blue, Material: brass (CuZn), Tin-plated, Insulation sleeve: PVC, Temperature resistance: up to 70 °C.
Technical specifications
| Version | Flachsteckhülse | |
| Suitable for | 4,8 x 0,8 mm | |
| Material | Messing, verzinnt | |
| Isolated | Yes | |
| Insulation colour | blau | |
| Connection | Crimpanschluss | |
| Cable cross-section | 1,5 bis 2,5 mm² | |
| AWG cross-section | AWG 16 bis 14 | |
| Nominal size according to DIN | DIN 46245 | |
| Length | 18 mm |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
