17412 | Klauke
Insulated wire end ferrule, 4.0 mm², 20 mm/12 mm long, DIN 46228/4, orange, 17412
Order No.: 18H7410
EAN: 4012078000154
MPN:
17412
Unit Price (€ / pc.)
0.1166 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1166 €
500 pcs.
0.1035 €
1000 pcs.
0.0916 €
5000 pcs.
0.0750 €
*incl. VAT plus shipping costs
**Subject to prior sale

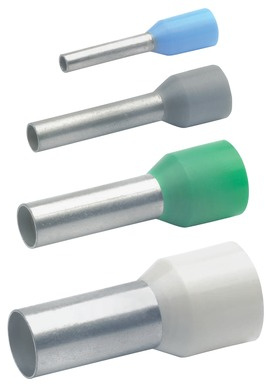

Wire end ferrule, 17412, KLAUKE
Insulated wire-end ferrule to DIN with Easy-Entry insulation for splice-free cable entry, colour code 2, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Colour | orange | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 20 mm | |
| Cable cross-section | 4.0 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 12 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
