4696 | Klauke
Insulated wire end ferrule, 0.5 mm², 12 mm/6 mm long, DIN 46228/4, white, 4696
Order No.: 18H7458
EAN: 4012078023610
MPN:
4696
Unit Price (€ / pc.)
0.0595 € *
Available: 1,380 pcs.
Leadtime: 2 Weeks **
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0595 €
100 pcs.
0.0512 €
500 pcs.
0.0476 €
1000 pcs.
0.0417 €
5000 pcs.
0.0381 €
*incl. VAT plus shipping costs
**Subject to prior sale

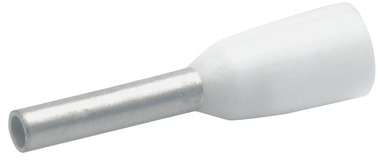

Wire end ferrule, 4696, KLAUKE
Insulated wire-end according to DIN with Easy-Entry insulation for splice-free cable entry, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6. Color coding and dimensions according to DIN 46228 Part 4.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Farbe | weiß | |
| Isolationsmaterial | Polypropylen | |
| Isoliert | Yes | |
| Kontaktmaterial | Kupfer | |
| Länge | 12 mm | |
| Leiterquerschnitt | 0,5 mm² | |
| max. Temperatur | 105 °C | |
| Norm | DIN 46228/4 | |
| Pinlänge | 6 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
