4728 | Klauke

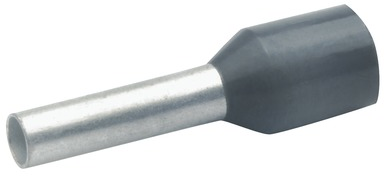

Insulated wire end ferrule, 1.5 mm², 14 mm/8 mm long, DIN 46228/4, black, 4728
Order No.: 18H7470
EAN: 4012078023726
MPN:
4728
Unit Price (€ / pc.)
0.0369 € *
Available: 1,607 pcs.
Leadtime: 2 Weeks **
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0369 €
100 pcs.
0.0321 €
500 pcs.
0.0298 €
1000 pcs.
0.0262 €
5000 pcs.
0.0250 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire end ferrule, 4728, KLAUKE
Insulated wire-end according to DIN with Easy-Entry insulation for splice-free cable entry, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6. Color coding and dimensions according to DIN 46228 Part 4.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Colour | black | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 14 mm | |
| Cable cross-section | 1.5 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
