47312 | Klauke

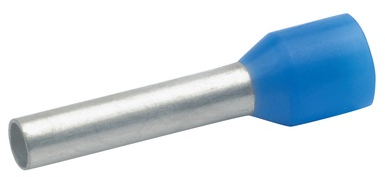

Insulated wire end ferrule, 2.5 mm², 18 mm/12 mm long, DIN 46228/4, blue, 47312
Order No.: 18H7475
EAN: 4012078023771
MPN:
47312
Unit Price (€ / pc.)
0.0964 € *
Available: 2,000 pcs.
Leadtime: 2 Weeks **
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0964 €
100 pcs.
0.0821 €
500 pcs.
0.0738 €
1000 pcs.
0.0678 €
5000 pcs.
0.0619 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire end ferrule, 47312, KLAUKE
Insulated wire-end according to DIN with Easy-Entry insulation for splice-free cable entry, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6. Color coding and dimensions according to DIN 46228 Part 4.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Colour | blue | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 18 mm | |
| Cable cross-section | 2.5 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 12 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
