47318 | Klauke
Insulated wire end ferrule, 2.5 mm², 24 mm/18 mm long, DIN 46228/4, blue, 47318
Order No.: 18H7476
EAN: 4012078023788
MPN:
47318
Unit Price (€ / pc.)
0.1071 € *
Available: 300 pcs.
Leadtime: 9 Weeks **
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1071 €
100 pcs.
0.0916 €
500 pcs.
0.0845 €
1000 pcs.
0.0750 €
5000 pcs.
0.0714 €
*incl. VAT plus shipping costs
**Subject to prior sale

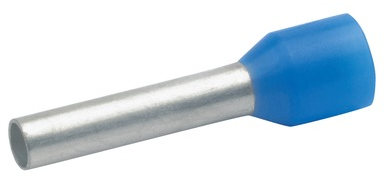

Wire end ferrule, 47318, KLAUKE
Insulated wire-end according to DIN with Easy-Entry insulation for splice-free cable entry, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6. Color coding and dimensions according to DIN 46228 Part 4.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Colour | blue | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 24 mm | |
| Cable cross-section | 2.5 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 18 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
