47816 | Klauke
Insulated wire end ferrule, 25 mm², 30 mm/16 mm long, DIN 46228/4, yellow, 47816
Order No.: 18H7058
EAN: 4012078023887
MPN:
47816
Unit Price (€ / pc.)
0.3689 € *
Available: 80 pcs.
Leadtime: 3 Weeks **
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3689 €
100 pcs.
0.3213 €
500 pcs.
0.2951 €
1000 pcs.
0.2678 €
5000 pcs.
0.2535 €
*incl. VAT plus shipping costs
**Subject to prior sale

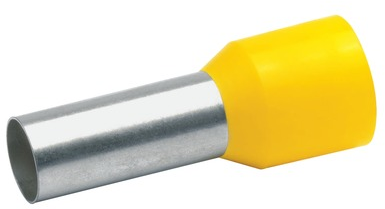

Wire end ferrule, 47816, Klauke
Insulated wire-end according to DIN with Easy-Entry insulation for splice-free cable entry, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6. Color coding and dimensions according to DIN 46228 Part 4.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Colour | yellow | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 30 mm | |
| Cable cross-section | 25 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 16 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
