48020 | Klauke

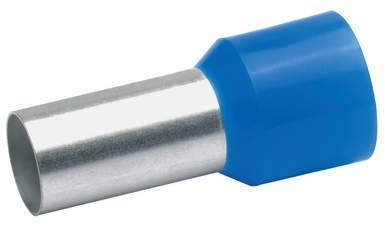

Insulated wire end ferrule, 50 mm², 36 mm/20 mm long, DIN 46228/4, blue, 48020
Order No.: 18H7490
EAN: 4012078023948
MPN:
48020
Unit Price (€ / pc.)
0.7497 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
0.75 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7497 €
10 pcs.
0.6664 €
50 pcs.
0.6069 €
100 pcs.
0.5117 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire end ferrule, 48020, KLAUKE
Insulated wire-end according to DIN with Easy-Entry insulation for splice-free cable entry, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6. Color coding and dimensions according to DIN 46228 Part 4.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Farbe | blau | |
| Isolationsmaterial | Polypropylen | |
| Isoliert | Yes | |
| Kontaktmaterial | Kupfer | |
| Länge | 36 mm | |
| Leiterquerschnitt | 50 mm² | |
| max. Temperatur | 105 °C | |
| Norm | DIN 46228/4 | |
| Pinlänge | 20 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
